| MULTIFUNCTIONAL DIRECTIONAL HEAD |
|
|
| |
CUTTING HEADS |
| MULTIFUNCTIONAL DIRECTIONAL HEADS |
|
| |
|
| |
|
| |
 |
| |
|
| |

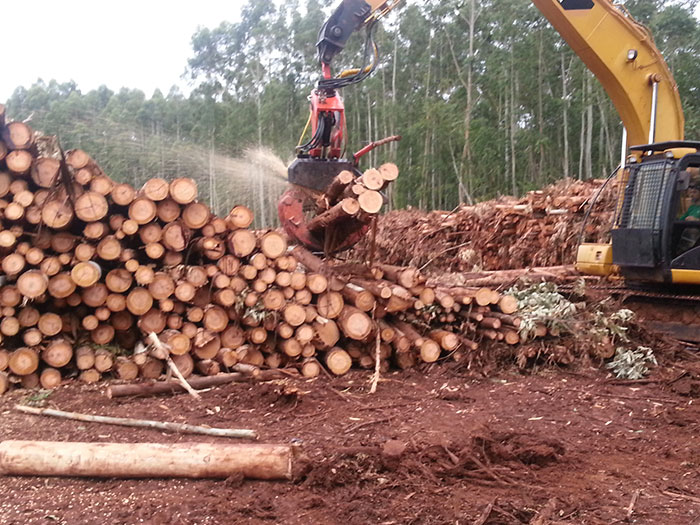

The Multi-functional Head is an equipment capable to perform Three Operations: the Tree felling like the named Directional Feller, Slashing of Bunches like a Grapple Saw and Loading like a Log Grapple, for these three reasons it was named Multifunctional Head. This equipment is made in Three Versions applicable on Hydraulic Excavators of Small and Middle Sizes and Agricultural Tractors. It has a robust construction which utilizes certified steel with a 450 Mpa resistance limit and USI AR 450 steel with a nearly 450 HRB hardness. |
| |
|
| |
|
| |
PHOTOS AND VIDEOS |
| |
|
| |
|
| |
|
| |
|
| |
|
| |
|
| |
TECHNICAL SPECIFICATIONS |
| |
|
| |
|
| |
| |
Cutting Diameter (mm) |
Area (m²) |
Chain |
Saber (pol) |
Motor (cc) |
Minimum Flow (l/min) |
Minimum Pressure (bar) |
Recomended Pressure (bar) |
Weight (kg) |
Base Machine |
| MJ 300 |
300 |
0,18 |
4,04mm |
26" to 30" |
19 |
80 |
160 |
170 to 220 |
320 |
Excavators between 5 to 12 ton, Backhoe Loader, Skid Steer Loader, Tricycle |
| MJ 580 |
580 |
0,4 |
3/4" |
34" to 40" |
40 |
120 |
220 |
200 to 260 |
882 |
Excavators between 5 and 20 ton, Skid Steer Loader |
| MJ 800 |
800 |
0,58 |
3/4" |
40" to 45" |
60 |
190 |
220 |
200 to 260 |
1230 |
Excavators between 15 and 25 ton |
| MJ 1000 |
1000 |
0,8 |
3/4" |
40" to 52" |
80 |
220 |
250 |
220 to 300 |
1750 |
Excavator and others from 25 to 40 ton |
|
| |
|
| |
|
| |
|
|
|
